GLU-100 LABEL UNWINDER

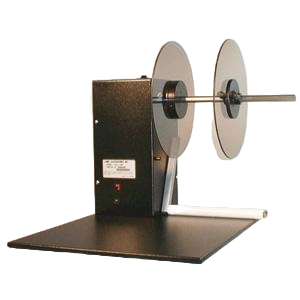

GLU-100 Label Unwinder

The GLU-100 provides a simple, fast & economical solution to the problem of unwinding large quantities of labels at one time where large roll diameters are required.

Features Include:

• Electronic speed control automatically synchronizes the unwinding speed to the speed of your printer
• Switch Selectable Bi-Directional Motor Control (unwinds labels in or out)
• Speed up to 28″/Second
• Universal Power Supply 100-240VAC, 47/63hz
• Maximum Roll Diameter 12″ / 30.48cm
• Maximum Roll Width 1″ to 9″ / 2.5cm to 22.86cm
• Core Size 3″ / 7.62cm Inside Diameter (Optional Core Sizes and Coreless Kit Available)
• RoHS Compliant

Why this model:

Most Thermal/Thermal Transfer printers are designed to hold 8″ diameter rolls. For applications that require a larger roll diameter the GLU-100 accepts roll diameters of up to 12″. The GLU-100 is positioned behind the printer. Its Electronic Speed Control unwinds the label based on the speed of the printer taking away any stress on the printhead motor due to the heavier weight of the label roll. Combined with the GLR-100 Label Rewinder this is ideal for label applicator applications. The larger rolls reduce the amount of production down time.
