Mach 1

MACH 1 SONIC LPS

MACH 1 SONIC LPS

SKU:

TECHNICAL SHEET Rotation speed: Adjustable up to 16 rpm Activation type: Full semi-automatic Max weight: 5,000 lbs Max height of pallet: 86in Turntable dimensions: 59in diameter Turntable height: 3" from floor Pre-stretch ratio: 250% standard Max. of pallet: 56in x 56in Power supply: 115/1/60 15 amp Warranty: 3/5 years Tower height: 85in Passage height: 97in
**PRICE UPON REQUEST**
Contact Us View full details

Additional Information

Description

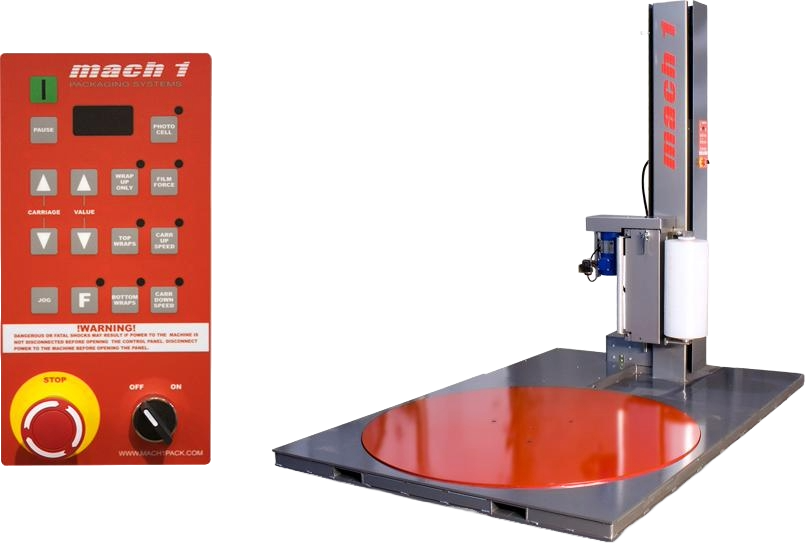

LOW PROFILE SEMI-AUTOMATIC STRETCH WRAPPER
  • Uses 20″ machine film
  • Electronically adjustable film tension
  • 250% film pre-stretch ratio, others available
  • Maintenance free ball bearing carriage guide
  • Automatic corner compensation
  • Lifetime warranty on stretch rollers

TECHNICAL SPECIFICATIONS

 Turntable Speed Adjustable up to 16 RPM
 Control Type Full-Feature Semi-Automatic
 Max. Load Capacity 5,000 lbs
 Max. Load Height 86″
 Turntable Size 59″ diameter
 Turntable Height 3″ from floor
 Pre-Stretch Ratio 250% standard
 Max. Load Size 56″ x 56″
 Electrical 115/1/60 15 amp
 Warranty 3/5 years
 Tower Height 85″
 Clearance Required 97″
THE X-TRETCH PRE-STRETCH FILM CARRIAGE PROVIDES SUPERIOR FILM ECONOMY, FILM TENSION AND USER SAFETY
  • Uses 20″ machine film
  • Electronically adjustable film tension
  • 250% film pre-stretch ratio, others available
  • Maintenance free ball bearing carriage guide
  • Automatic corner compensation
  • Lifetime warranty on stretch rollers

THE ROBUST PRO-GLIDE TURNTABLE SUPPORT SYSTEM IS MAINTENANCE FREE AND FEATURES SUPERIOR WEIGHT CAPACITY
  • Structural steel frame
  • Forklift portable
  • Flush with floor pit mountable
  • Easy access to components
  • 1/2 HP turntable drive motor
  • Heavy duty turntable chain drive
  • Maintenance free turntable support casters

THE ADVANCED AND USER-FRIENDLY DIGI-TECH CONTROL UNIT FEATURES UNIQUE FUNCTIONS TO WRAP ANY TYPE OF PALLET
  • Photo-eye automatic height detection
  • Separate top and bottom wrap count 1-10
  • Turntable soft start/stop
  • Dual adjustable film carriage speed
  • Reinforce wrap function
  • Positive turntable home alignment
  • Gentle wrap feature for light or unstable pallets
POPULAR OPTIONS
  • Standard loading ramp for pallet jack
  • Extended heavy duty ramp for electrical walkie
  • Wrap height extension for taller pallets
  • Frame extension for larger than standard pallets
  • Built-in scale package with digital weight display
  • Auto film cut
  • 30” film carriage
  • 70” diameter turntable
