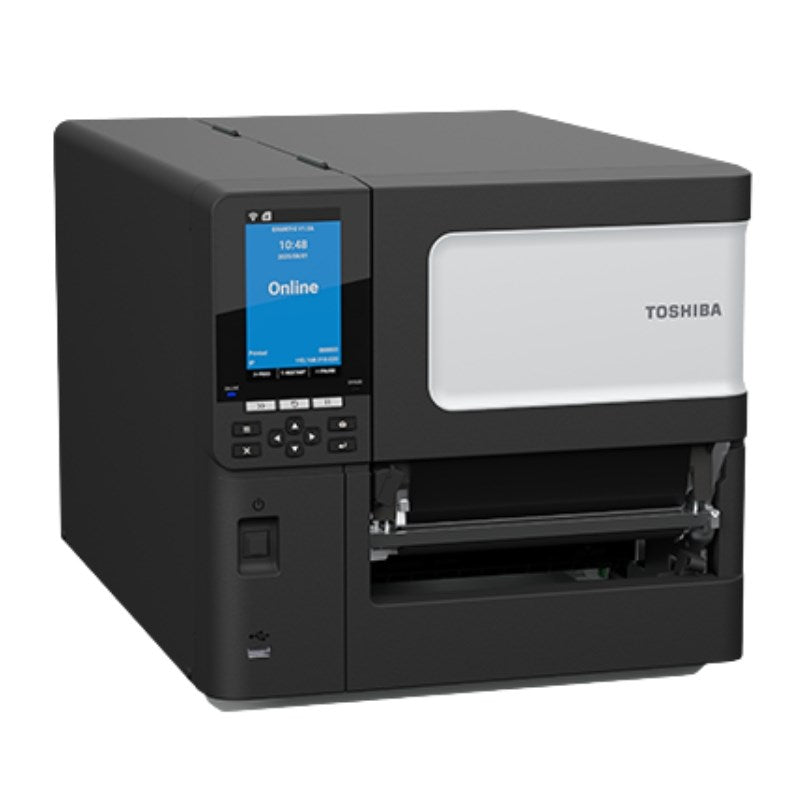

Toshiba Tec BX610T (203 DPI)

High Large-Format Capacity: Enables printing on widths up to 6.3 inches (160 mm), with high output and a robust design suited for intensive use.

Advanced A-BRID OS Platform: Combines a real-time system and Linux on a dual-core processor, facilitating embedded application execution, direct PDF printing, automatic language recognition, and secure remote management via the cloud (e-Bridge CloudConnect or SOTI Connect).

Reliable and Durable Design: Engineered for continuous operation, with long-life printheads, optimized ribbon management, and compatibility with high-capacity ribbons up to 31.5 inches (800 mm) to reduce downtime.

Wide Media Compatibility: Supports centered media ranging from 2 to 6.5 inches (50 to 165 mm), rolls up to 7.9 inches in diameter (200 mm), and ribbons up to 6.7 inches wide (170 mm).

Simplified Interoperability: Automatically detects various print languages (TPCL, ZPL II, DPL, SBPL, IPL, PDF), ensuring quick integration into existing infrastructures.

Printing Technology

• Thermal transfer
• Direct thermal

Printhead Type

• Near edge

Resolution

• 203 dpi (8 dots/mm)

Print Width and Length

• Print width: 1.85 to 6.3 inches
• Print length (batch mode): 0.24 to 59 inches
• Cut mode length: 0.84 to 59 inches
• Peel-off mode length: 0.84 to 58.9 inches

Print Speed

• Up to 12 inches per second

User Interface

• Color LCD screen
• 2 LED indicators
• 11 control keys

Dimensions and Weight

• Dimensions (W × D × H): 13 × 18.1 × 12.2 inches
• Weight: 19.6 kg

Ribbon

• Width: 2.2 to 6.7 inches
• Length: 23,622 to 31,496 inches

Supported Emulations

• TPCL
• ZPL II
• DPL
• SBPL
• PDF (automatic detection)

Connectivity

• USB 2.0 high-speed (host/HID)
• Ethernet LAN 10/100/1000

Connectivity Options

• RS232
• Wi-Fi (WLAN)
• Bluetooth
• Extension I/O interface
